AliClad Cladding and Soffit Systems

Specify Now

After the popular introduction of AliClad Max we’ve decided to widen the range to include our new Aliclad Cladding and Soffit Systems.

Our tough climate calls for exterior products that can perform in all weather conditions, meet the most stringent code and standards, and bring elegance and architectural integrity. Available in a multitude of colours, finishes and even woodgrain.

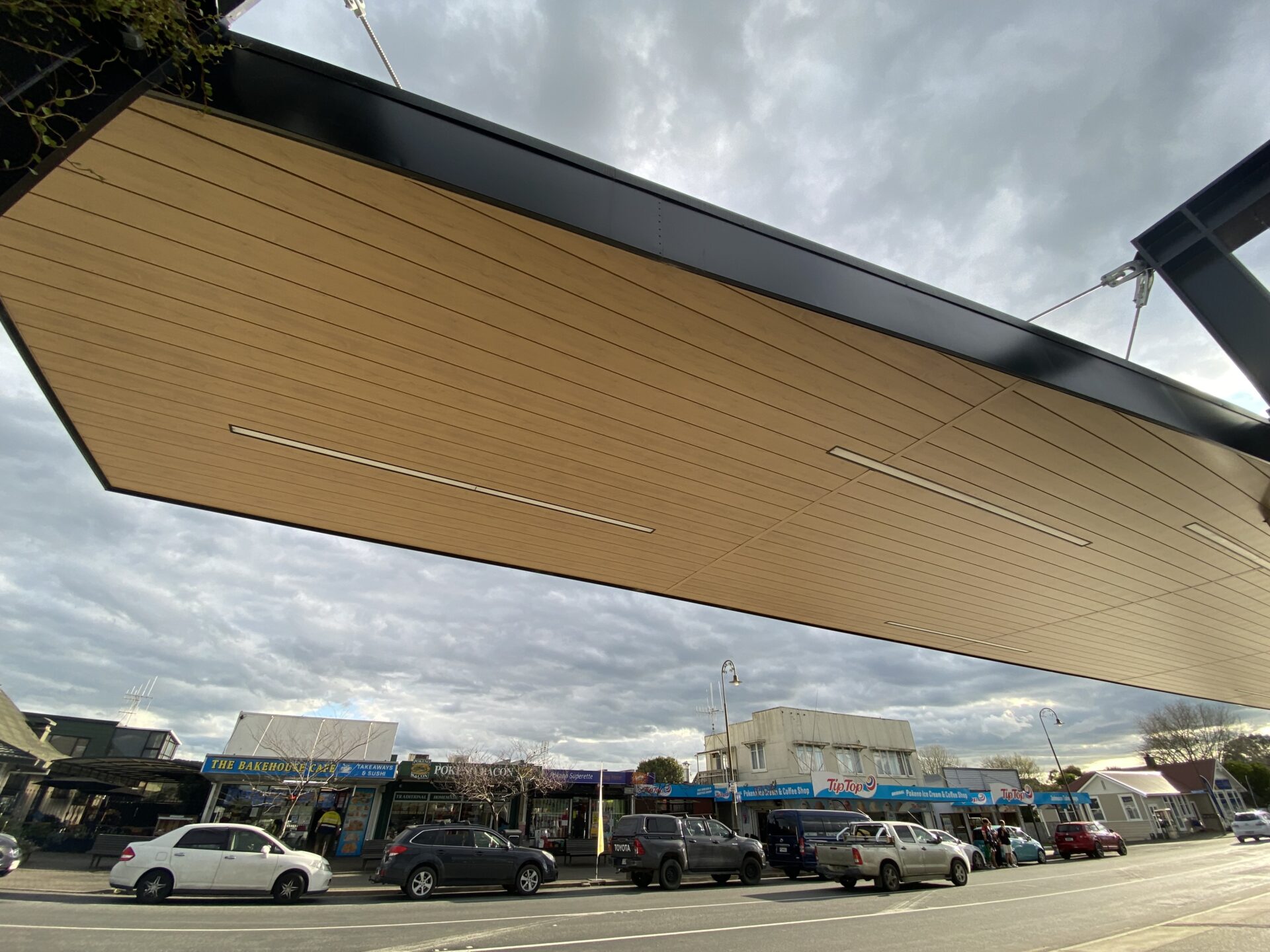

Like AliClad Max, Aliclad has been designed by The Building Agency, as both a cladding system and a soffit system. This versatile system has been developed on the strengths of the AliCald Max system but with performance and standard cladding systems to make it appealing in the residential sector. Aliclad offers architects, builders and developers a robust and beautifully finished product, supported on an standard and easy-to-install fixing system engineered to perform.

WEATHER-TIGHTNESS: The system has been designed in line with NZBC. It has been tested to be compliant with AS/NZS4284.

STRUCTURE: The AliClad system is designed for high wind loadings and engineered to be fixed at maximum span distances for reduced project costs while still fitting within standard residential cladding wall build-ups.

FIRE PROTECTION: Aluminium is non-combustible under the NZBC and the support system has a limited / non-combustible wall assembly. The NZBC lists aluminium products as non-combustible and this has been confirmed by way of a ISO 5660.1 test achieving a Group 1S.

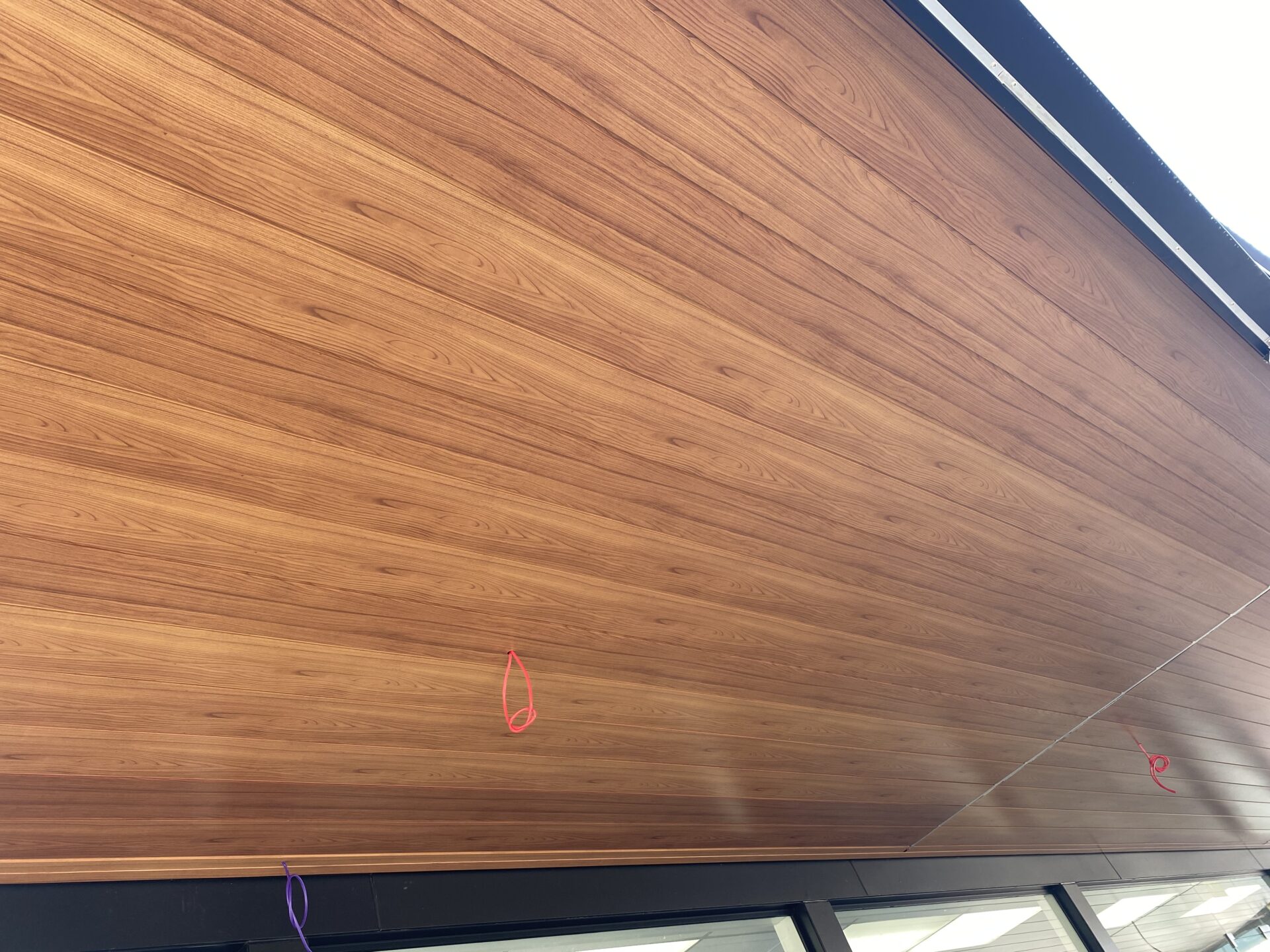

FINISH AND AESTHETICS: Flat and matt powdercoat options, anodised-look paint finishes, sublimated woodgrains, and horizontal and vertical profile alignments achieve both classic and contemporary designs. We’ve selected a range of options to meet most requirements.



Features

Strength

At 2.2mm 6063 T6 Aluminium Alloy with a high tensile and rigidity properties, AliClad has excellent impact resistance, making it ideal for high-traffic areas such as schools. Improved rigidity over other systems comes from its depth and structure.

State-of-the-art coating

A state-of-the-art coating line, both colour and woodgrain options are available.

Coated in New Zealand

Because it is coated locally, designers can choose from an extensive range of colours and wood finishes, with reduced lead times. Custom and corporate colours are also available.

Flashing System

AliClad’s comprehensive two-piece and multi-function extruded flashing system ensures ease of installation that does not affect aesthetic finish.



Benefits

  • Local coating (including custom colours) means no long lead times
  • Non-Combustible
  • Impressive impact resistance makes it ideal for high-traffic areas like schools.
  • Built to perform at very high wind loads
  • True system drainage for improved weather-tightness proven by way of AS/NZ4284,
  • Improved rigidity over other systems due to the depth and structure of the weatherboards.
  • Flexibility to install windows before or after
  • Easy Installation
  • Virtually Maintenance Free
  • Sustainable
  • Rot & Pest resistant
  • Versatile
  • Lightweight
  • Mould Resistant
  • Hidden Fixing system
  • 60-year expected service life for the material
  • Up to 25 years warranty on selected finishes
  • Ideal Timber Substitute

Ordering:

Any colours that are not in stock, will be indented. Lead times and minimum order charges may apply. Contact us for more information.

Download Colour Chart:

Flat Matt & Woodgrain Finish

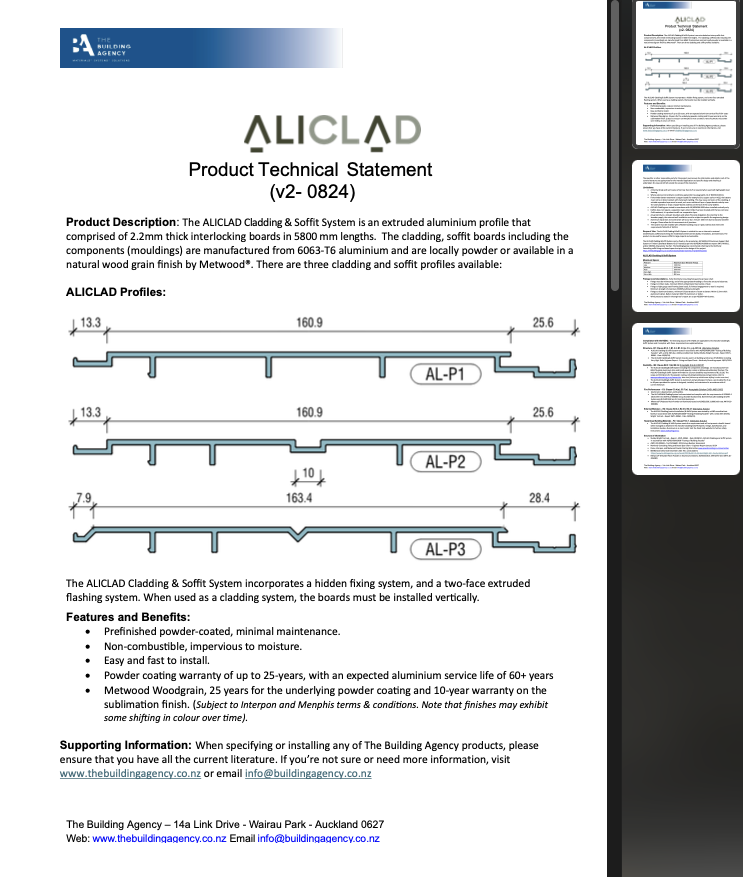

1. Product Technical Statement

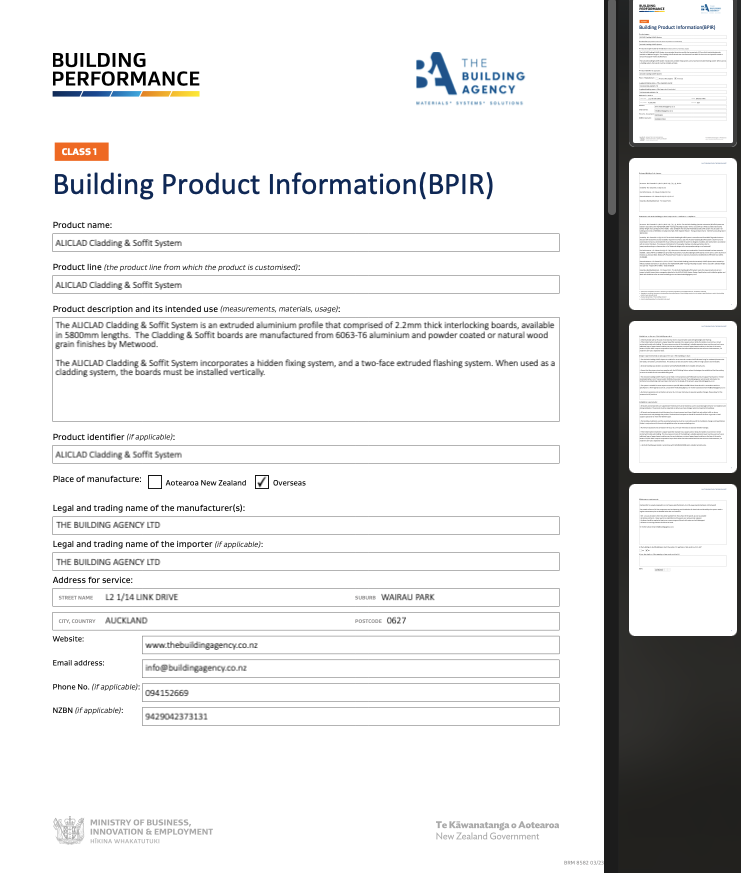

2. Building Product Information Requirements
3. ASNZS4284 v12

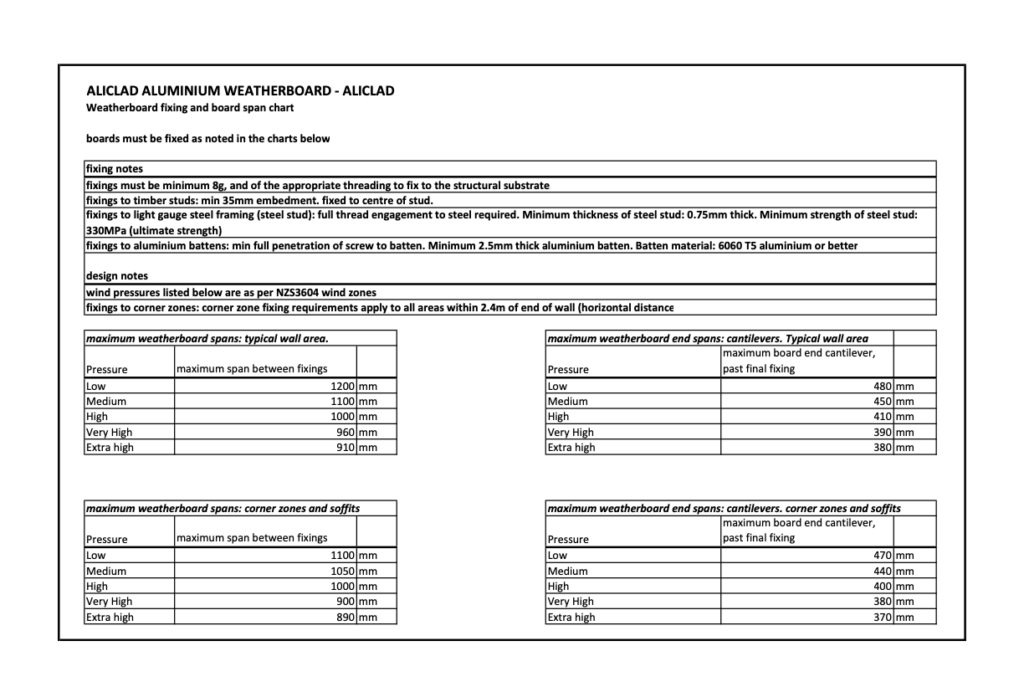

4. Span Table for Weatherboard & Soffit

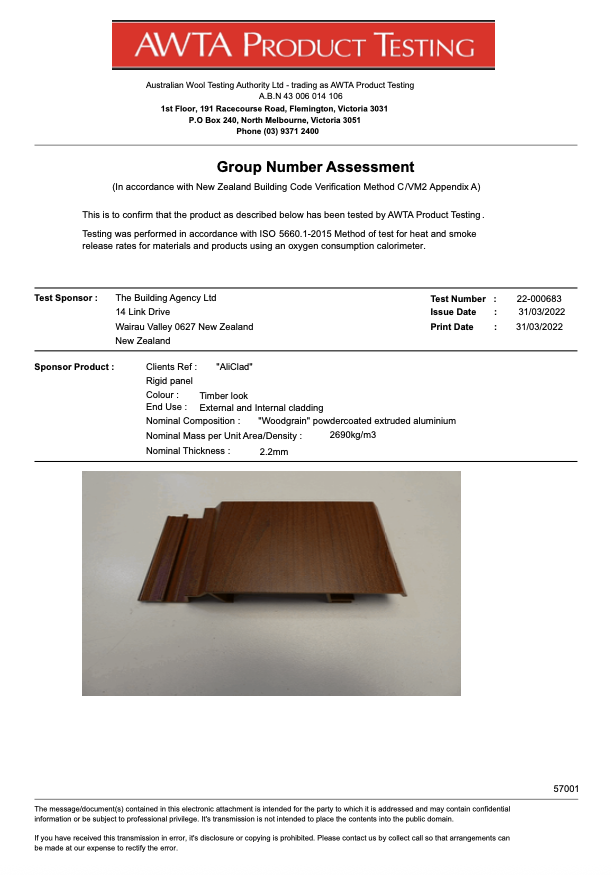

6. Fire Test ISO5660.1

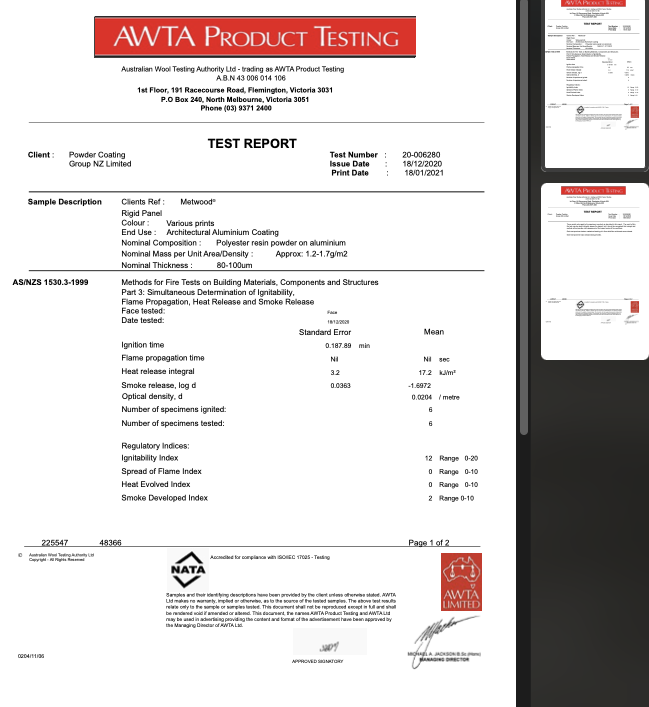

7. Metwood Fire Testing
8. H3.1 Cavity Battens



1. AliClad Vertical Installation V.2
